The Ability of Different Observers in Measuring Dimensions of Objects and Cavities in Cone Beam-CT Images

Citation: Eskandarloo F, Eskandarloo A, Amini P. The Ability of Different Observers in Measuring Dimensions of Objects and Cavities in Cone Beam-CT Images. Avicenna J Dent Res. 2019;11(4):139-143. doi: 10.54172/ajdr.2019.28.

Background

Highlights

• Accuracy of measurements obtained from CBCT images, which is a diagnostic tool in dentistry, is very important.

• Providing enough adduction and correct training, accuracy and ability of different specialists of dentistry and even general dentists in measuring dimensions of objects and cavities in CBCT images also need attention.

• High accuracy and reliability were reported by different specialists of dentistry and general dentists in measuring dimensions of objects and cavities in CBCT images.

There are various indications for the use of imaging in the field of dentistry and oral surgery. Radiographic examination is regarded as one of the important diagnostic tools in dental treatments (1). Cone-beam computed tomography (CBCT) was an innovation in maxillofacial imaging. It can produce a rapid volumetric image with a low-dose scan of the patient (low mA). CBCT provides multiple planar images of both jaws by a single rotational scan (2-5). This imaging system can provide 3-dimensional visualization of all tooth surfaces as digital images (6). CBCT is a user friendly and autorun software package. Many clinicians use the capability of linear measurement in measuring the distances between anatomic landmarks or measuring bone thickness for treatment planning and surgery. Therefore, any error could affect treatment processes (7-10). The reliability of radiographic angles, ratio, and length measurements are the key factors that contribute to the clinical decisions in treatment plans (11). CBCT can be used as a diagnostic tool that produces images with the actual anatomic size (12). In addition to the precision of CBCT, another problem is the accuracy of measurements that could be very different depending on who analyzes/measures it (11). For example, during surgery to place the implant, the positioning of implant and the measured areas need to be changed by the radiologist due to changes in the treatment plan or any other reason. In this case, surgeon or prosthetist should be able to interpret new positions from the perspective of length and width of bone and proximity to anatomic elements, as accurate as a radiologist (13). Some studies have evaluated the accuracy of linear measurements conducted using different CBCT systems (14). Some studies on the interpretation of information obtained from CBCT conducted by different radiologists and also by one radiologist at different times have not shown significant differences between measurements (1,15). There is no complete information about the accuracy of measurements gained from different specialists of dentistry in comparison with a radiologist. This research was therefore carried out given the importance of this issue and due to the lack of similar studies on the ability of specialists of different fields of dentistry in measuring dimensions of CBCT images in Hamadan, west of Iran.

Materials and Methods

Three phantoms were used in this experimental study. For producing these phantoms, using a hacksaw, some parts were made from fresh beef rib bone and these parts were placed in a wax mold formed as human mandible. In their different areas, by means of implant drills, some cavities with known height and diameter were made as lucent spaces for measuring purposes. Moreover, gutta-percha, extracted teeth, and titanium screws were used as opaque materials. Gutta-perchas were stuck to the buccal or lingual surfaces of phantom by a drip tape and teeth and titanium screws were placed into the bone (Figure 1). Overall, 35 areas were embedded in phantoms to be measured. Intended areas including height and diameter of each cavity at the upper side of the cavity, length of each gutta-percha and the distance between them, height and width of middle part of each titanium screw, and the biggest length of each tooth and the buccolingual width of them in the cementoenamel junction (CEJ) were measured twice within a week using a digital caliper with 0.01 mm accuracy as a gold standard and the average value was registered. Then, the phantoms were mounted on paraffin (Figure 2). All phantoms were scanned one by one using the CBCT Promax 3D device (Planmeca GmbH, Helsinki, Finland). To prepare the images, phantom was slightly fixed in a situation similar to its situation in the chin of a patient in chin rest and in a constant area with a field of view of the device. All of the prepared images were taken at 74kv, 10mA, 12s (120mAs) in 8*8 field of view and data of the device were reconstructed in Romexis software. For operating the Romexis software, each of the observers was trained and in order to consolidate, the how of measuring the intended areas was fully described to them. Measurements were made by two radiologists, two oral and maxillofacial surgeons, two periodontists, and two general dentists using the on-screen ruler in a 13-inch, 1600*900 resolution TFT LED-back light LCD monitor with AMD Radeon HD 6650M-1GB graphic processor, made in china in a room with appropriate light. Height and width of cavities, length of gutta-percha, height and width of screws, width of teeth in a cross-sectional view, distance of gutta-perchas in axial view, and length of teeth in panoramic view were measured (Figures 3-5). Measurement was made twice within a week by each observer and registered in a checklist.

Close

Figure 1.

Prepared Phantom Before Mounting

Figure 1.

Prepared Phantom Before Mounting

Close

Figure 2.

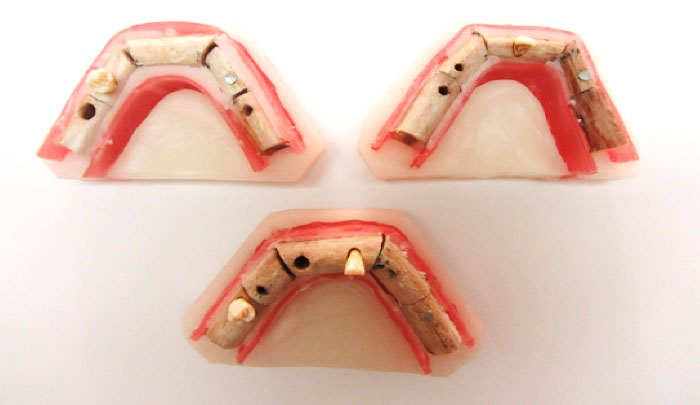

Mounted Phantoms with Paraffin

Figure 2.

Mounted Phantoms with Paraffin

Close

Figure 3.

Measurement of Prepared Cavity Length in Cross Sectional Image

Figure 3.

Measurement of Prepared Cavity Length in Cross Sectional Image

Close

Figure 4.

Measurement of Distance Between Gutta Perchas in Axial Image

Figure 4.

Measurement of Distance Between Gutta Perchas in Axial Image

Close

Figure 5.

Measurement of Tooth Length in Panoramic Like Image

Figure 5.

Measurement of Tooth Length in Panoramic Like Image

Since the calculation of height and width of the ridge, the determinants of length and diameter of the implant, is necessary and since they are common areas measured in clinic, and considering the length and diameter of produced implants for analyzing the data achieved from this study, registered values were divided into 3 clusters including cluster 1: values from 2-7 mm, cluster 2: values from 7-16 mm, and cluster 3: values more than 16 mm. To investigate the reliability of obtained measurements from observers in each turn, and also to compare the observer groups to each other and to the gold standard, intra-class correlation coefficient (ICC) was employed once for each cluster and once for all the data. To demonstrate the presence or absence of difference between mean values of the clusters with each other, the ANOVA was used. Further, to investigate the reliability of mean values within all clusters and the gold standard, t-test was used.

Results

Generally, 16 values per area and 560 values overall was registered by observers and divided by the clusters. Results of ICC showed inter- and intra-observer agreement, agreement between observer groups and between each group and the gold standard (Tables 1 to 4). ANOVA results demonstrated a considerable statistical difference between the clusters (Table 5). Results from t-test showed that in clusters 1 and 3, unlike cluster 2, the mean values were significantly different (Tables 6 to 8).

Discussion

Neither intraoral nor panoramic radiographs give the 3-dimensional information of the imaged area needed for pre-operative planning of dental implant placement. Therefore, special dental CBCT examinations have been used recently for this purpose (16). Applications of CBCT in maxillofacial imaging are increasing. Currently CBCT is commonly used for implantology, periodontics, temporomandibular joint pathology, airway analysis, and endodontics. Linear measurements are used for the quantitative analysis of the alveolar bone (height and width) (17). In this study, we considered the ability of specialists of different fields of dentistry and general dentists in accurate measurement of different dimensions. According to Tables 1-4, agreement between observers in each field and between observers of different fields, and their agreement with gold standard was evident. In a study conducted by Al-Ekrish and Ekram (18), dimensions of marked edentulous areas of human dry skulls were recorded from reformatted sections by two observers. There was a high inter- and intra-examiner reliability that was consistent with the results of our research. Accordingly, in the study of Ruellas et al (19), five observers repeated 12 linear measurements in CBCT scans of 10 patients within 10 days. The reliability of operators was high and in line with our results. De Santana Santos et al (13) conducted a study and used CBCT scans of 50 patients. Two examiners located some landmarks and linear measurements twice in images on different days. Corroborating our results, there was no significant difference between intra- and inter-examiners. Moshfeghi et al (17) aimed to evaluate the accuracy of linear measurements of CBCT. To this end, 15 radiographic linear measurements were made twice by three observers. High level of inter- and intra-observer reliability was achieved that was similar to the results of our study. Berco et al (15) and Suomalainen et al also came to the same results (16).

ICC was employed in the studies conducted for investigating the reliability of observers. All of them demonstrated high reliability of observers, confirming our results. In this study, in addition to ICC, t test was used to analyze the data including three clusters. As shown in Tables 6-88, in cluster 2, there was not a significant difference between the mean value and mean value of the gold standard, while in clusters 1 and 3, this difference was significant. In cluster 1, the difference might have been caused by small sizes and consequently difficulty of measuring accurate distance by observer’s hand. Moreover in cluster 3, the cause might have been the characteristics of measuring areas. For instance, the length of tooth comes in this cluster (more than 16 mm) and since a petty curvature is on apex of the tooth, there is possibility for lack of attention and misdiagnosis of the curvature in observer’s eyes that causes an inaccurate measurement. Generally at the range of named values (clusters 1 and 3), it seems more training is needed for observers.

Conclusions

Providing enough adduction and correct training, accuracy and ability of different specialists of dentistry and even general dentists, in measuring dimensions of objects and cavities in CBCT images, can be completely reliable.

Conflict of Interest Disclosures

The authors declare that they have no conflict of interests.

Ethical Statement

The ethics committee of Hamadan University of Medical Sciences approved this study.

Authors’ Contribution

The authors had the same contribution in this study.
